Exploitation Field of Geothermal Water „Draškovec AATG“

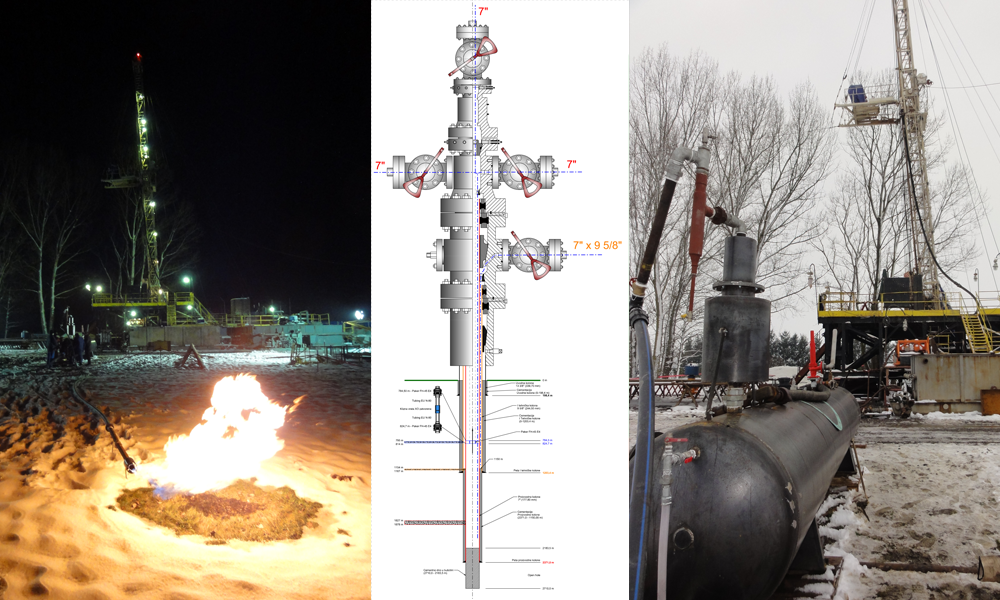

By analyzing the geothermal water from the Draškovec-1 (DR-1) well and the dissolved gas, the chemical composition and physical properties of the geothermal water and the gases dissolved in it were determined. The gas from the technological separation process can be flared or, if economically justified, used for commercial purposes. The maximum measured temperature at the bottom of the well was 113°C.
The expected vertical depth of the directional well Draškovec-2 (Dr-2) is projected to be 2,320 meters with a turning point at a depth of 940 meters, with a deviation L = 1,091 meters and an azimuth of 45°. After the construction and equipping of the well, its exploitation and hydrodynamic testing and development for the extraction of geothermal water are planned.
RAW MATERIAL
Geothermal water
LOCATION
City of Prelog, Međimurje county, Croatia
EXPLOITATION AREA
11 184 100 m2
PROJECT DOCUMENTATION:
- Main mining project for drilling the exploratory well Draškovec-2 (DR-2) in the geothermal water exploration area “Draškovec AATG” – standard project
- Report on geological data of the Draškovec area
- Report on the preliminary assessment of the intervention’s acceptability for the ecological network – geothermal water exploration area “Draškovec AATG”
- Report on the compliance of the Draškovec AATG intervention with spatial planning documentation
- Analysis of production data testing of the geothermal exploratory well Draškovec-1 (DR-1)
- Public tender offer for the allocation of exploration area for testing geothermal water in the exploration area “Draškovec AATG”
- Request for approval to explore mineral resources – geothermal water in the exploration area “Draškovec AATG”
